NavImpulse Autopilot with Portable Wind Sensor

NavImpulse Autopilot with Portable Wind Sensor

Discover the NavImpulse Autopilot — the smart autopilot built for modern sailors.

Powered by a 9-axis gyro-stabilized IMU, NavImpulse continuously monitors your heading, heel angle, and vessel dynamics in real time. The result: smooth, precise course-keeping that automatically adapts to sea conditions.

Control everything from your Android device. Switch between Compass Mode, Wind Mode, or Waypoint Navigation with a tap. Adjust your heading by voice command, or directly from your Garmin watch while you’re at the bow.

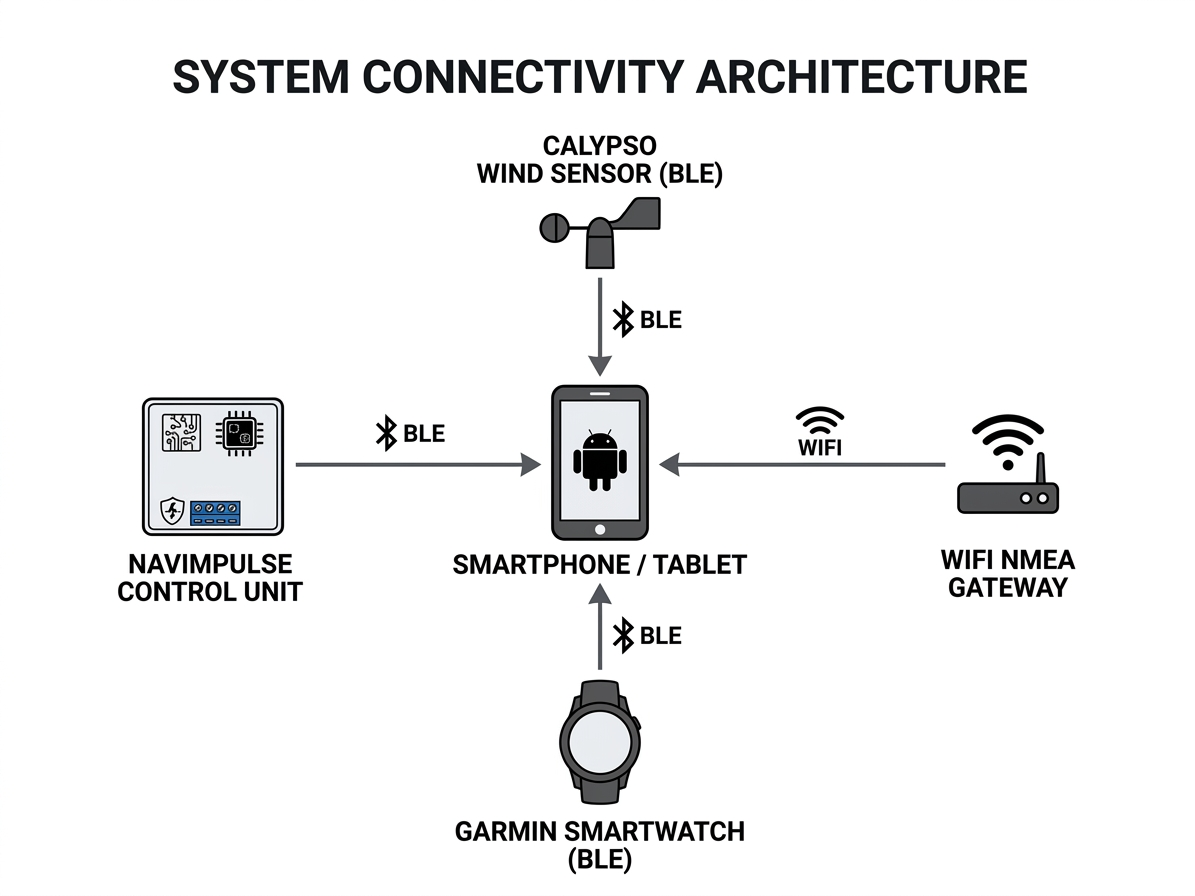

NavImpulse connects wirelessly via BLE to the Calypso Ultrasonic Portable Wind Sensor for a true plug-and-play Wind Mode — zero wiring required. NMEA 0183 over Wi-Fi is also supported for boats with an existing onboard network.

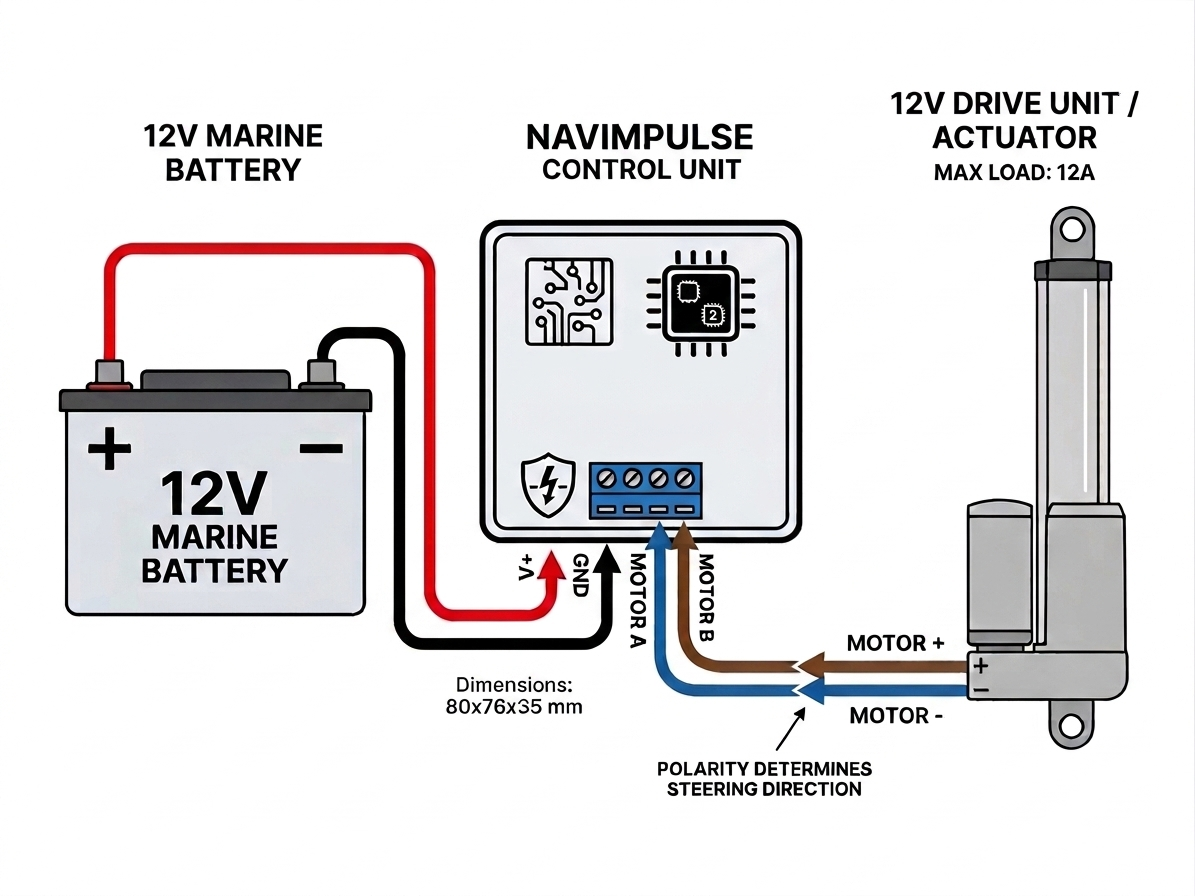

The control unit is compatible with virtually any 12V linear drive, allowing you to upgrade your autopilot system while keeping your existing actuator.

Built for boats up to 11 metres and 6,000 kg, the system is designed to be installed and operational in minutes.

2-year warranty included

CE certified

Technical specs

Autopilot Brain :

• Power Input: 12V DC
• Drive Output: High-current PWM control. Max Load: 12A continuous
• Connectivity: Encrypted Bluetooth Low Energy (BLE)
• Environment: Interior / Dry area installation only (Not waterproof)
• Dimensions: 80 x 76 x 35 mm
• Weight: Lightweight design, approx. 85g
• Mounting: 4x M4 screw holes for secure mounting

Ultrasonic Portable Mini Wind Meter :

• Diameter : 43 mm
• Height : 47 mm
• Weight : 78 grams
• Wind Speed Accuracy : ±0.3 m/s at 10 m/s
• Wind Direction : Accuracy : ± 1 degree
• Sample rate : 1 Hz
• Battery powered ( Wireless charging QI)
• Battery runtime 150 hours of active use
